General Doors Advantage Carriage House

The Advantage Carriage House door is a 3-panel design that allows this model to have larger windows, which really makes this door stand out in a good way when you see it in person or when you pass a house with these doors. Like General door's other steel garage doors, this series has plenty of quality features and low maintenance. Offering all the benefits of modern technology, this door will not only look great, but it provides years of dependable service.

The pre-finished, rust-proof galvanized steel on this door has a deep wood grain and a beaded-panel design with an exclusive center bead in the door that enhances the swing door look.

Design of the Advantage Garage Door

The finely detailed wood-grain surface has deeply embossed panels that give a sharp, well-defined woodgrain appearance to this garage door. A unique center bead in the door pannel creates an authentic old-time swinging door look. Here is a section of the door that shows the beaded channel:

Construction of the Advantage Door

  • Sandwich-type construction with 1-3/8’’ polystyrene foam insulation, pressure bonded between two skins of 26 gauge hot-dipped galvanized steel
  • Three layer construction provides a calculated insulation value of R-6.7, along with exceptional strength and substantial, solid feel during operation
  • Double tongue and groove joint for the tightest section fit possible
  • Thermal break between steel skins​ to prevent excess energy loss
  • Heavy duty hardware and commercial grade 14 gauge full leaf hinges are standard

Garage Door Finish

General Doors per-paints both sides of the garage door with a primer, and finishes the door with a top coat of baked on polyester for an exterior paint thickness of 1.0 mil. The available colors are Arctic White, Almond, and Sandtone:

available colors


Limited lifetime warranty against deterioration due to rust-through or delamination of door sections Three year hardware warranty

Design your own door using General Door's free online app

General Doors Advantage - Now in Black

The General Doors Advantage series now comes in a black factory finish - view the brochure to learn more:

Front cover of the general doors in black brochure

View the Advantage Carriage House brochure:

Advantage CH  brochure

Window Options

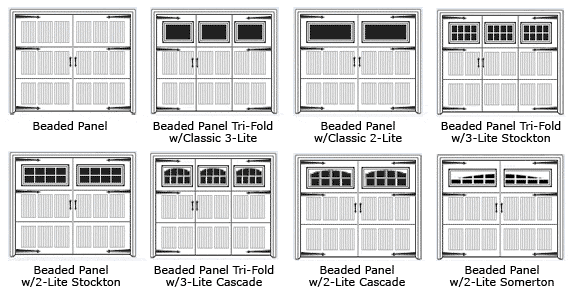

With General Doors Advantage Series, there are many window options to choose from:

window options 1 windo options 2
